Fuel Tech

PS-3000 PRESSURE SENSOR (0-3000 PSI)

$127.00 USD

Sale Sold out

Body Construction Stainless Steel Black Composite

Plug Kit W/ Mating Plug Kit No Plug Kit

Quantity

Overview

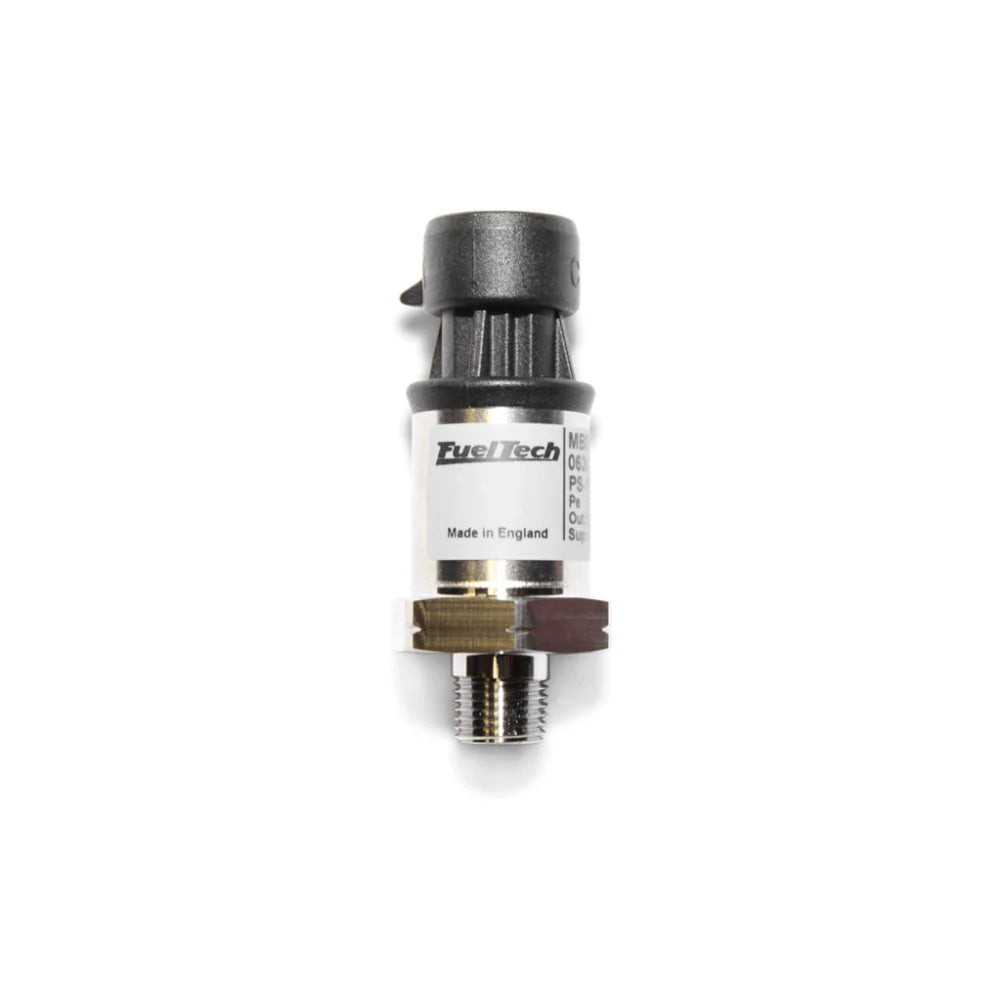

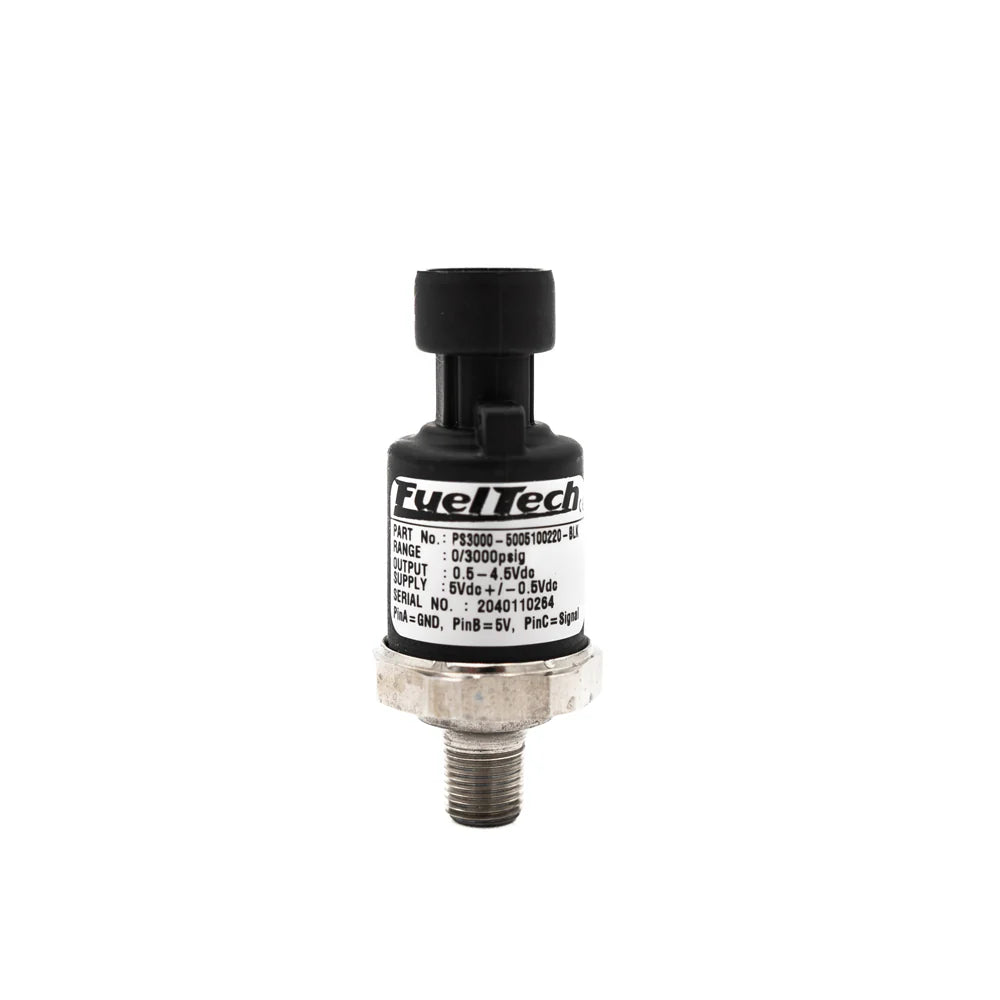

FuelTech's 3000 psi pressure sensor is designed to provide precise measurement capabilities tailored for high-performance applications. Engineered to withstand extreme pressures, the PS-3000 sensor is often used for wheelie bar load cells to accurately detect forces exerted on wheelie bars during acceleration, providing crucial data for optimizing vehicle stability and traction. With its robust construction and reliable performance, the sensor ensures accurate and real-time monitoring of pressure variations, empowering racers and automotive enthusiasts to fine-tune their vehicles for optimal performance and safety on the track. This sensor is available in stainless steel or black composite.

Technical

Output: 0.5-4.5V
Supply: 5V
Range: 0-3000 psi

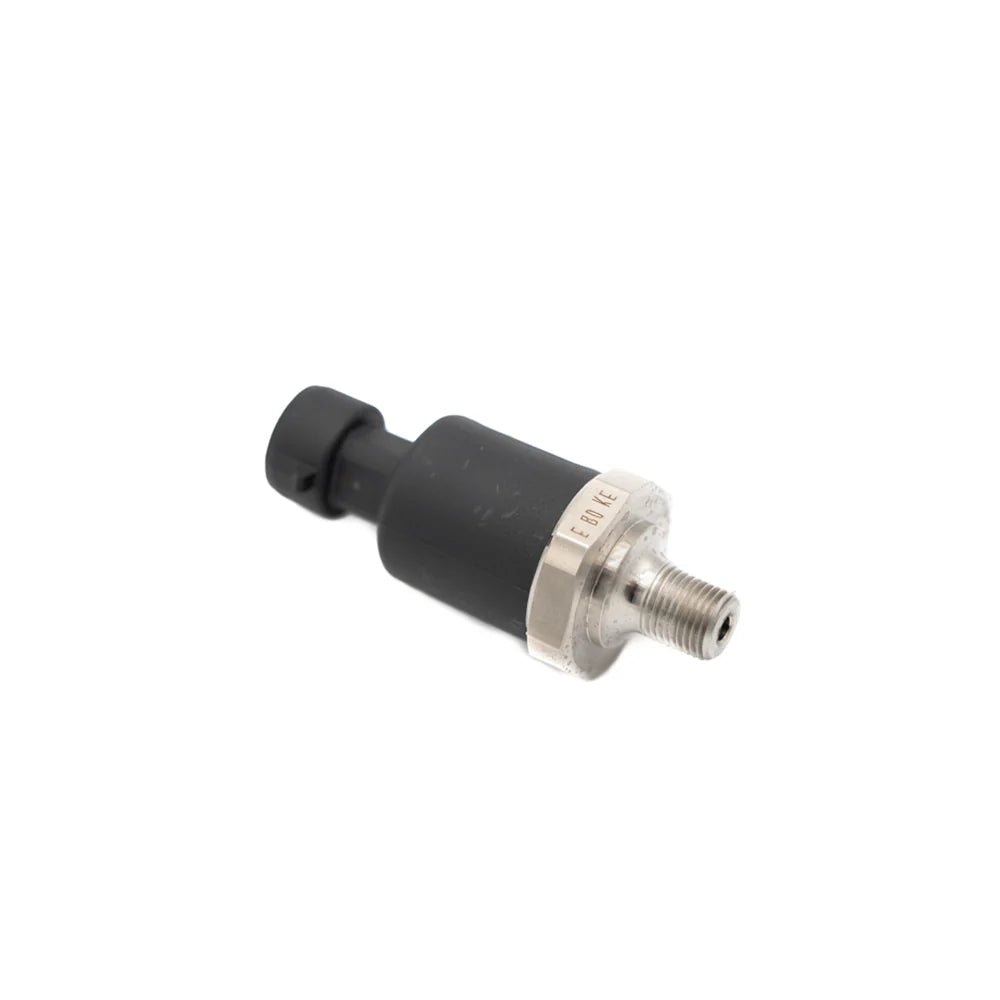

Thread size: 1/8" NPT
SPECS
Performance Long Term Drift: 0.2% FS/YR (non-cumulative)
Accuracy: 0.25% FS
Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)
Compensated Temp: -40°F to +257°F (-40°C to +125°C)
Operating Temp: -40°F to +257°F (-40°C to +125°C)
Zero Tolerance: 0.5% of span
Span Tolerance: 0.5% of span
Response Time: 1ms
Fatigue Life: 1M Cycles
Wetted Parts: 17-4 PH Stainless Steel
Enclosure: IP67 (IP65 for electrical code G)
Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)
Shock: Withstands free fall to IEC 68-2-32 procedure 1
EMC (Radiated Immunity): 100V/m
Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
Weight: 35 Grams

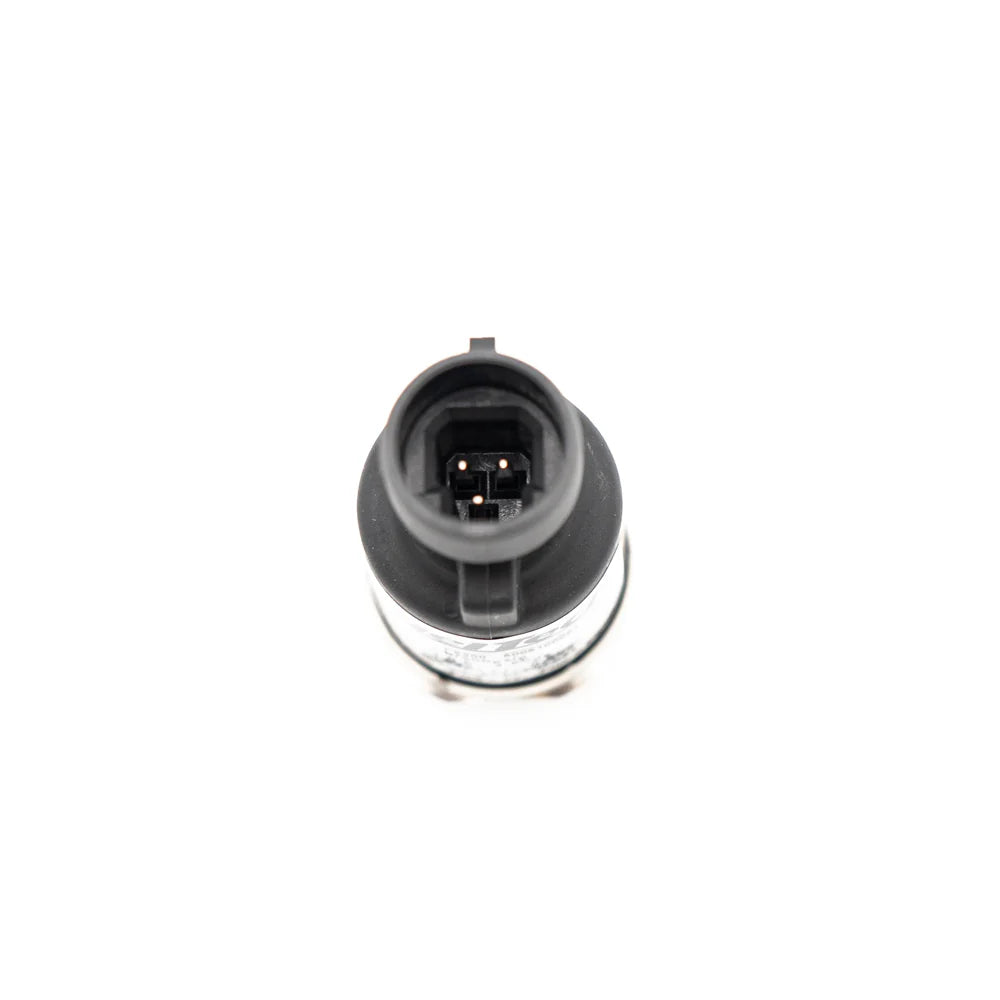

Connector Pinout

A - Ground
B - 5V
C - Signal
