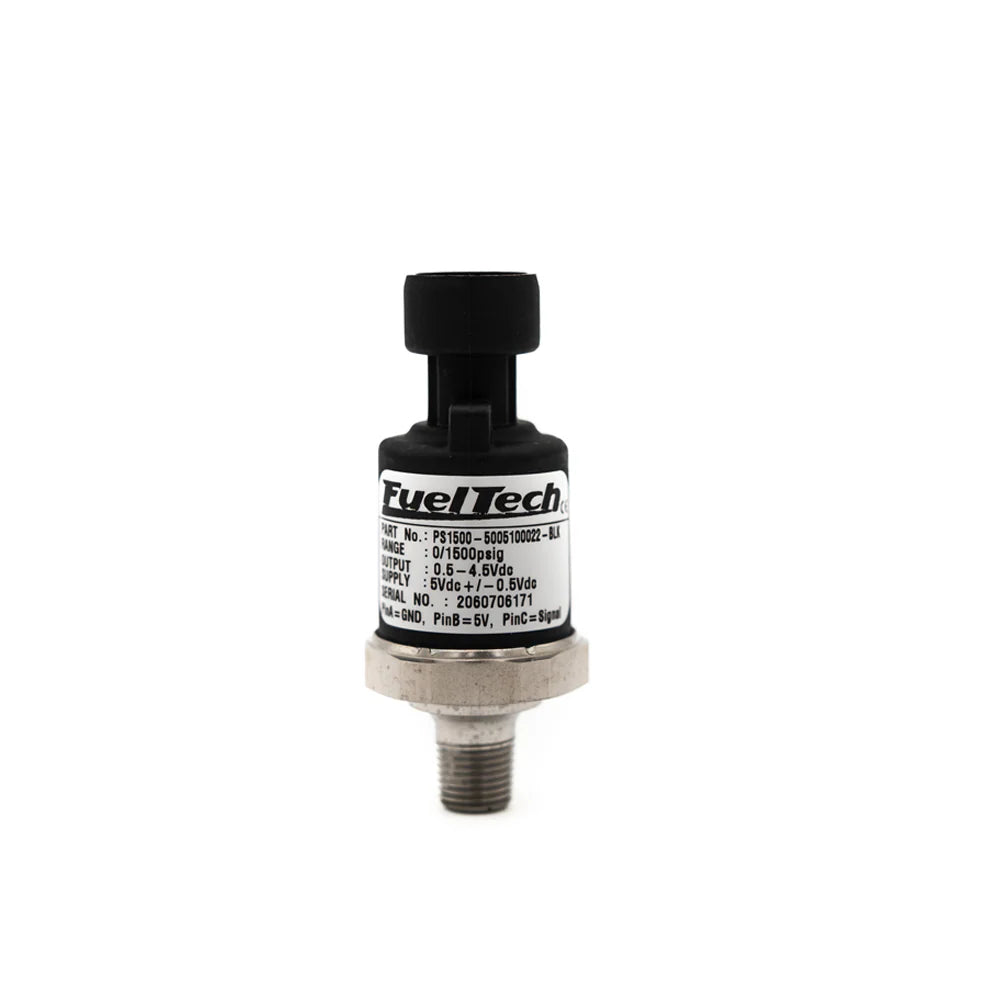

PS-1500 PRESSURE SENSOR (0-1500 PSI)

Overview

FuelTech's 0-1500psi Pressure Sensors deliver precise pressure measurements in high-performance applications such as racing. With a measurement range spanning from 0 to 1500 pounds per square inch (psi), these sensors provide accurate real-time data essential for monitoring critical systems such as nitrous bottle or brake pressure. Robust construction and high-quality materials ensure consistent performance, even in demanding environments.

Technical

• Output: 0.5-4.5V
• Supply: 5V
• Range: 0-1500 psi

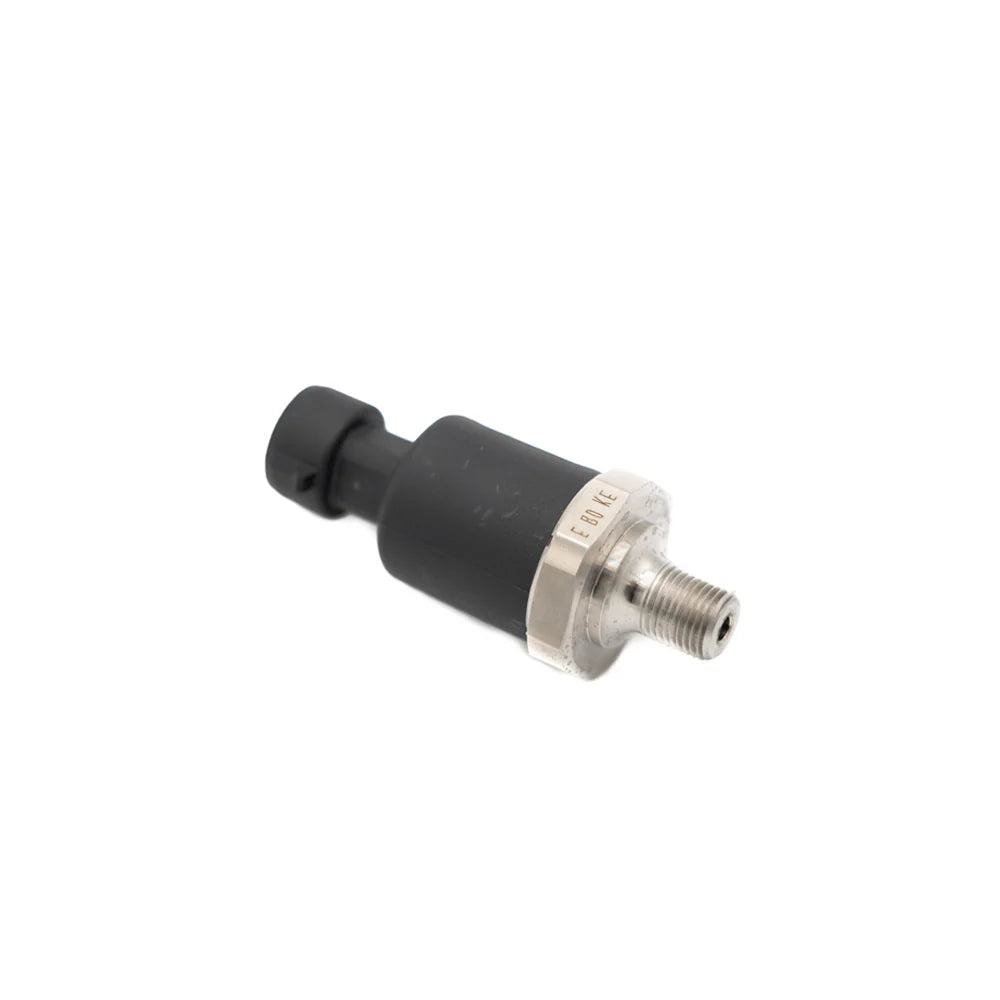

• Thread size: 1/8" NPT
• Performance Long Term Drift: 0.2% FS/YR (non-cumulative)
• Accuracy: 0.25% FS
• Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)
• Compensated Temp: -40°F to +257°F (-40°C to +125°C)
• Operating Temp: -40°F to +257°F (-40°C to +125°C)
• Zero Tolerance: 0.5% of span
• Span Tolerance: 0.5% of span
• Response Time: 1ms
• Fatigue Life: 1M Cycles
• Wetted Parts: 17-4 PH Stainless Steel
• Enclosure: IP67 (IP65 for electrical code G)
• Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)
• Shock: Withstands free fall to IEC 68-2-32 procedure 1
• EMC (Radiated Immunity): 100V/m
• Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
• Weight: 35 Grams

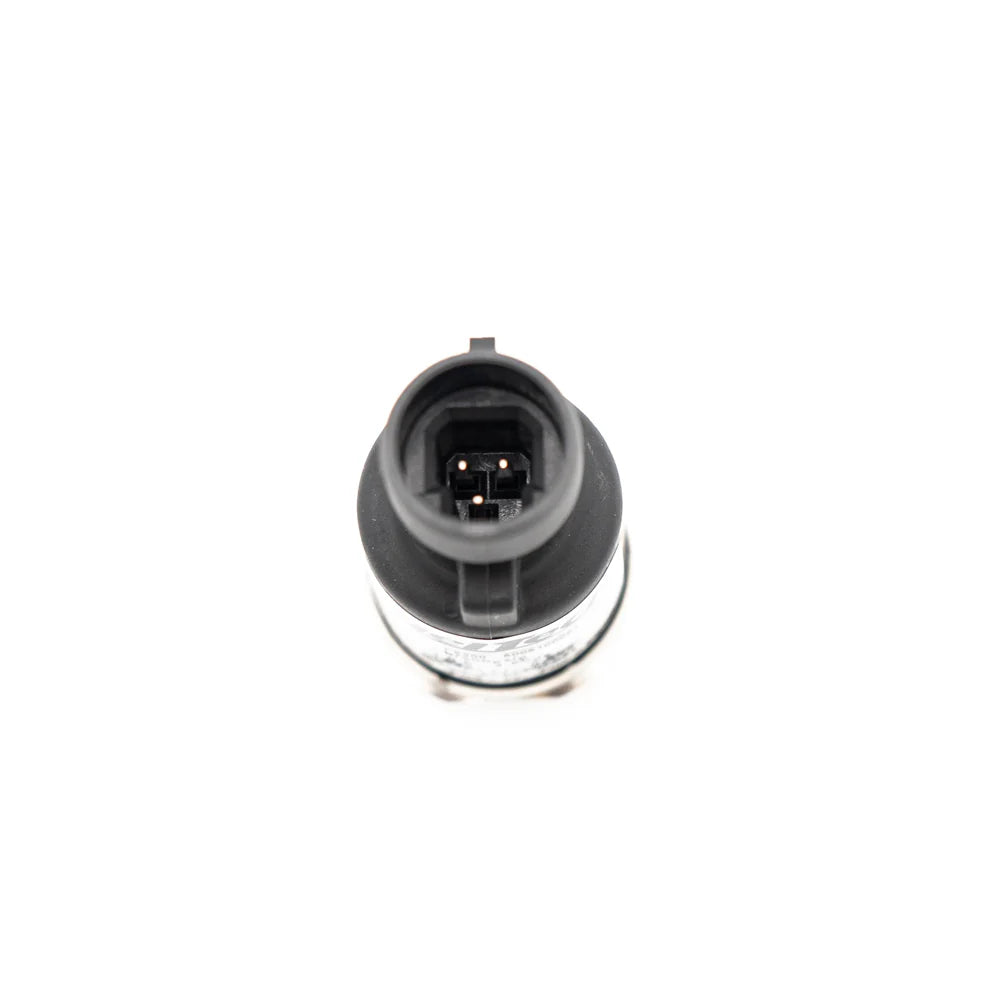

Connector Pinout:

• A - Ground
• B - 5V
• C - Signal
