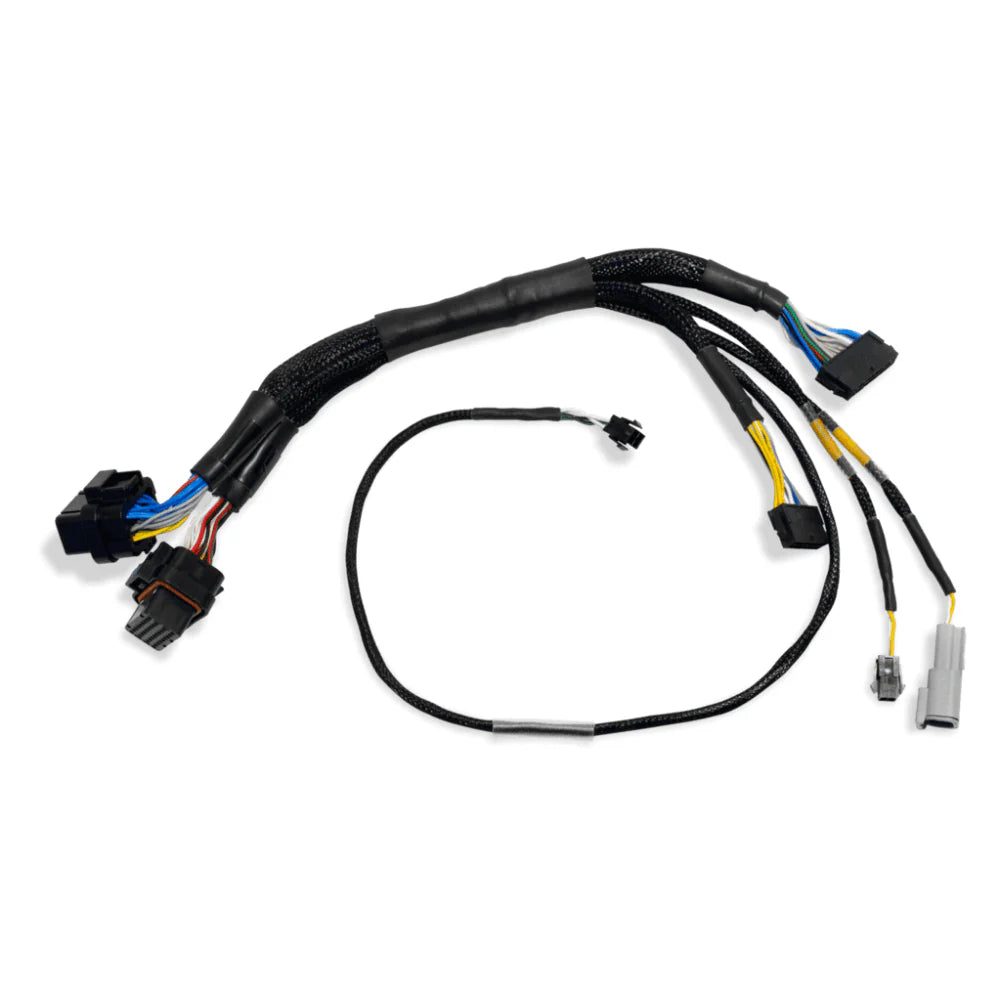

FT500 TO FT600 ADAPTER HARNESS

FT500 to FT600 plug and play adapter harness is the fastest way of using a FT600 on an existing FT500 installation.
The adapter is 16 inches long and has 2 FT500 connectors (24 and 16 ways), 2 FT600 connectors (2x 34ways), 2 CAN connectors and 1 connector for strain gauge shifter (4 ways).

Optional (20) FT600 terminals allow you wire additional inputs/outputs that are available on the FT600 compared to the FT500.

TECHNICAL DESCRIPTION

• 1 FT500 main connector - 24 ways
• 1 FT500 auxiliary connector - 16 ways
• 1 FT600 A SUPERSEAL connector - 34 ways
• 1 FT600 B SUPERSEAL connector - 34 ways
• 1 CAN-A connector - 4 ways
• 1 CAN-B connector - 2 ways
