FT INJECTOR 1020 LB/H GEN 2

Overview

The FT Injector 1020 lb/hr (10,710 cc/min @ 90 psi) is a low impedance, 1.5 Ohms, fuel injector from the FT Injector family. A Peak & Hold Driver, such as the 8A/2A Peak & Hold Driver or Peak & Hold PRO Injector Driver, is required. FT Injectors are compatible with any ECU and all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

The FT Injector 1020 lb/hr GEN 2 by FuelTech is the ultimate fuel injector for extreme racing applications, designed to meet the demands of high-horsepower engines. With an industry-leading flow rate of 1020 pounds per hour at 90 psi, this injector guarantees that your engine receives the fuel it needs to deliver peak performance, no matter the conditions.

Features

• REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders
• It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used
• Reduce the number of injectors, connections and hoses in your project;
• Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
• Tested and approved on +4,000 horsepower engines
• Compatible with any ECU on the market
• Use outputs from your ECU (by reducing the number of injectors)
• FuelTech warranty and support
• Project developed prioritizing the quality and durability of the injector

Technical

• Low impedance: 1.5 Ohms
• It is necessary to use an 8A/2A Peak and Hold driver
• Voltage limit: up to 24V

Dimensions

• Injector: 86 x 32 mm

Weight

• 160g

Contents of Packaging

• 1 FT Injector
• 1 Manual

Warranty

• 90 Days

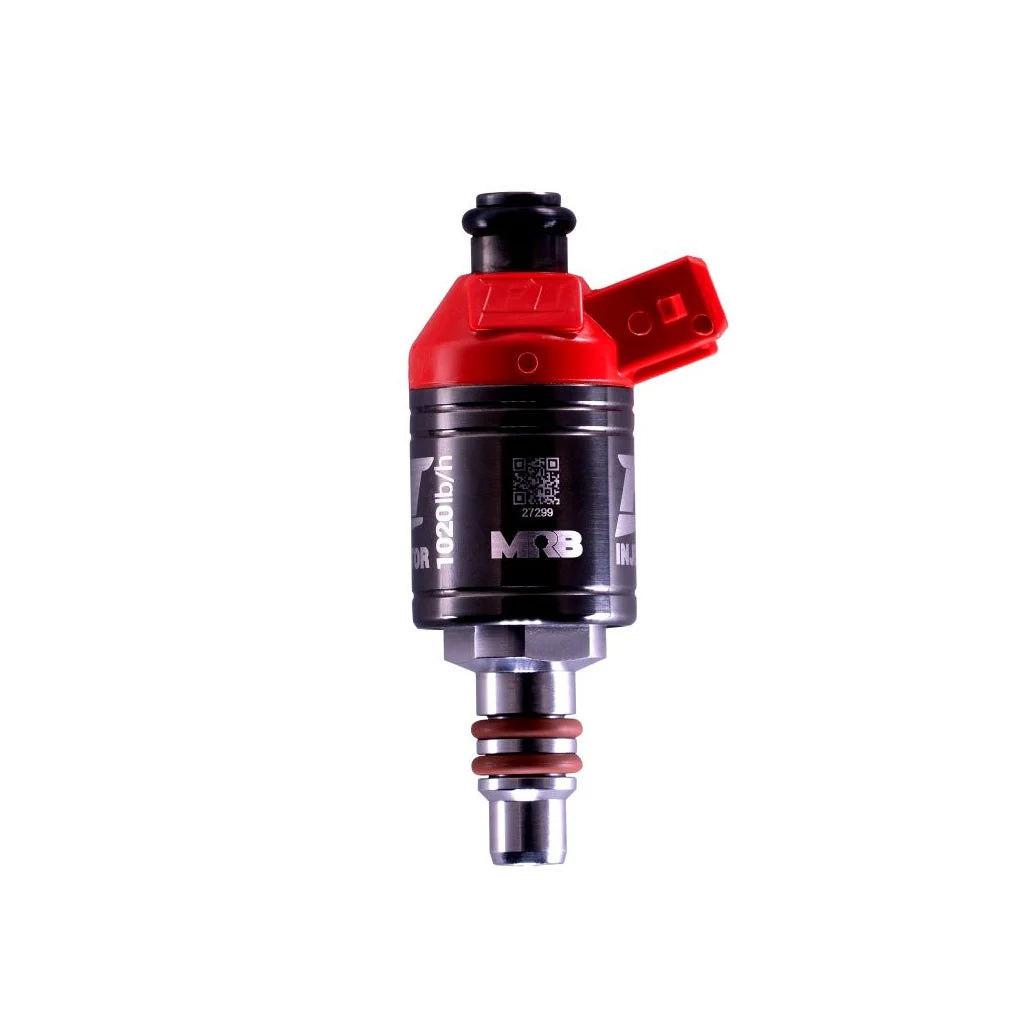

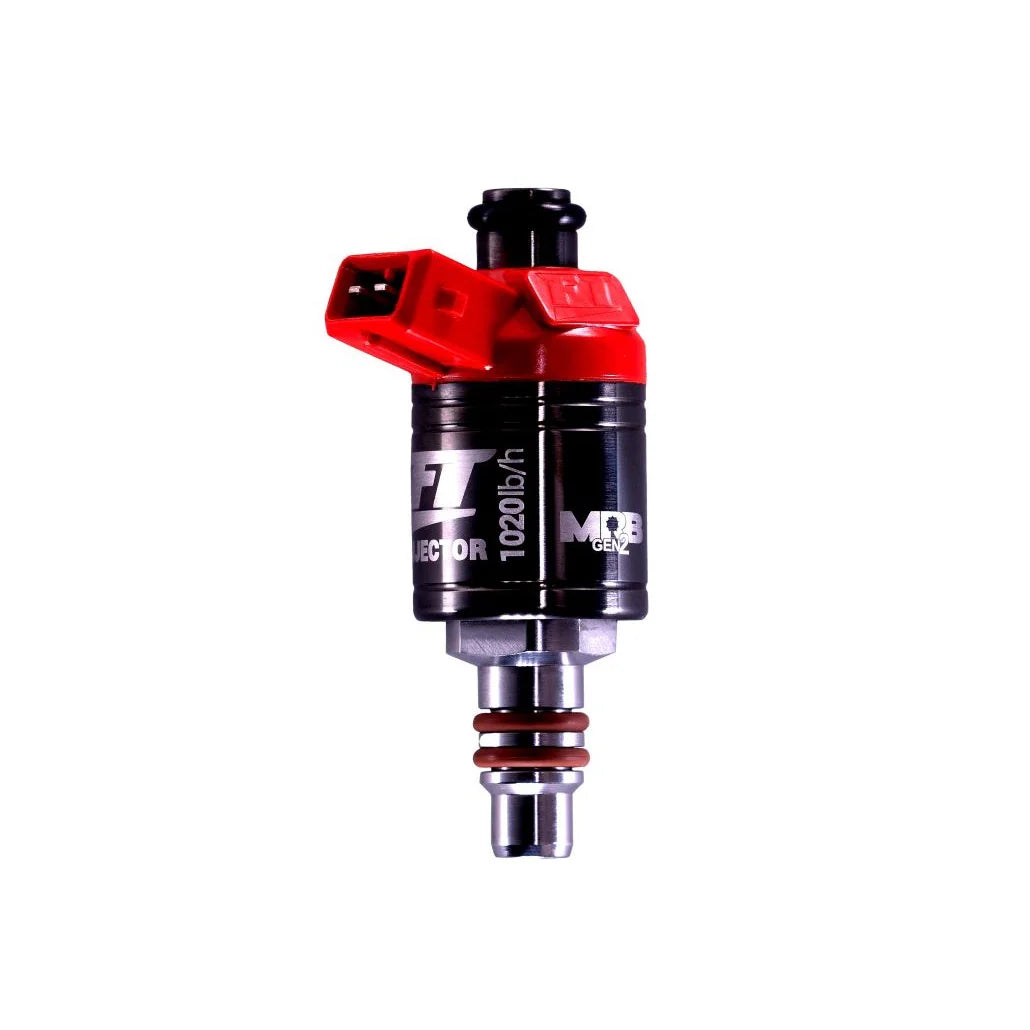

***Pictures are referencing injector style and may not be actual lbs/hr***
